Monocrystalline PV module Supplier - Monocrystalline Photovoltaic Panel

FLAMINGO series
Embrace the sun
power a zero-carbon future

Download

GK-2-66HTBD

740 W

Maximum power

23.8 %

Maximum efficiency

15 years

Product warranty

30 years

Power warranty

740 W

Maximum power
23.8 %

Maximum efficiency
15 years

Product warranty
30 years

Power warranty

Product Line

Embrace the sun power a zero-carbon future

FLAMINGO M10-156D

Cell type: N-Type

Maximum power: 650W

Conversion efficiency: 23.3%

Download

FLAMINGO M10-144D

Cell type: N-Type

Maximum power: 600W

Conversion efficiency: 23.2%

Download

FLAMINGO G12-132D

Cell type: N-Type

Maximum power: 740W

Conversion efficiency: 23.8%

Download

FLAMINGO M10-120S

Cell type: N-Type

Maximum power: 505W

Conversion efficiency: 23.3%

Download

FLAMINGO M10-144S

Cell type: N-Type

Maximum power: 600W

Conversion efficiency: 23.2%

Download

Product advantages

Embrace the sun, power a zero-carbon future

Anti-PID performance

Excellent anti-PID performance
High power generation performance

High power generation performance, lower temperature coefficient
(-0.29%/℃)
Excellent On-Site Power Output

Better temperature coefficient, low-light performance, and bifaciality, generating more electricity in real-world applications.
Extended Warranty

15-Year Product Warranty, Extendable to 25 Years; 30-Year Power Warranty.

Mechanical parameters

Item

Specifications
Cell Type

N-Type TOPCon
No. of cells

132(2x66)
Dimension

2384x1303x33mm
Weight

37.1 kg
Glass

Front: 2.0mm,semi-tempered
Rear: 2.0mm, semi-tempered
Frame

Anodized aluminum alloy frame

Item	Specifications
Cell Type	N-Type TOPCon
No. of cells	132(2x66)
Dimension	2384x1303x33mm
Weight	37.1 kg
Glass	Front: 2.0mm,semi-tempered Rear: 2.0mm, semi-tempered
Frame	Anodized aluminum alloy frame

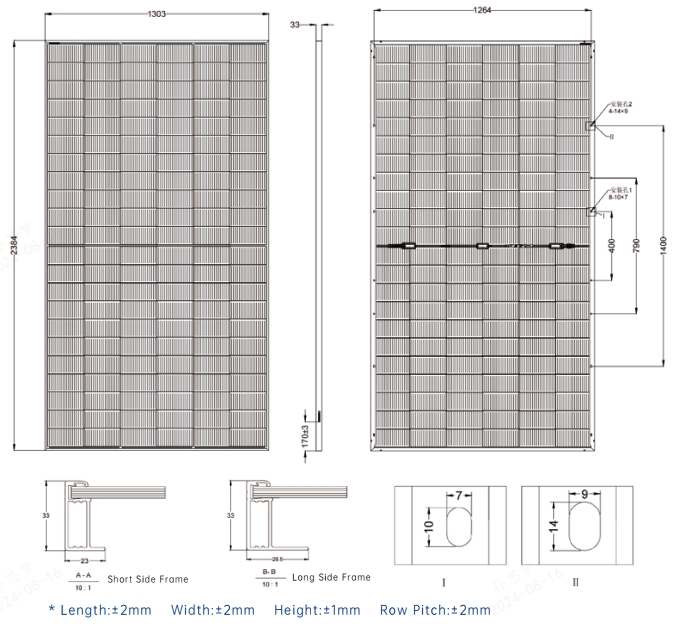

Dimensional drawing

Electrical Characteristics (STC Test)

Component model

GK-2-66HTBD
-710M

GK-2-66HTBD
-715M

GK-2-66HTBD
-720M

GK-2-66HTBD
-725M

GK-2-66HTBD
-730M

GK-2-66HTBD
-735M

GK-2-66HTBD
-740M
Maximum Power
(Pmax/W)

710

715

720

725

730

735

740
Open Circuit Voltage
(Voc/V)

48.91

49.14

49.36

49.55

49.71

49.87

50.03
Short-circuit Current
(lsc/A)

18.15

18.19

18.24

18.32

18.38

18.44

18.50
Peak Power Voltage
(Vmp/V)

41.50

41.69

41.91

42.10

42.25

42.39

42.53
Peak Power Current
(Imp/A)

17.11

17.15

17.18

17.22

17.28

17.34

17.40
Module Efficiency
(%)

22.9

23.0

23.2

23.3

23.5

23.7

23.8

Component model	GK-2-66HTBD -710M	GK-2-66HTBD -715M	GK-2-66HTBD -720M	GK-2-66HTBD -725M	GK-2-66HTBD -730M	GK-2-66HTBD -735M	GK-2-66HTBD -740M
Maximum Power(Pmax/W)	710	715	720	725	730	735	740
Open Circuit Voltage(Voc/V)	48.91	49.14	49.36	49.55	49.71	49.87	50.03
Short-circuit Current(lsc/A)	18.15	18.19	18.24	18.32	18.38	18.44	18.50
Peak Power Voltage(Vmp/V)	41.50	41.69	41.91	42.10	42.25	42.39	42.53
Peak Power Current(Imp/A)	17.11	17.15	17.18	17.22	17.28	17.34	17.40
Module Efficiency(%)	22.9	23.0	23.2	23.3	23.5	23.7	23.8

Mechanical Loading

Front Side Maximum Static Loading

5400Pa
Rear Side Maximum Static Loading

2400Pa
Hailstone Test

25mm hailstone at 23m/s

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm hailstone at 23m/s

Temperature Ratings (STC Test)

Temperature coefficient of lsc

+0.045%/C
Temperature coefficient of Voc

-0.25%/C
Temperature coefficient of Pmax

-0.29%/℃

Temperature coefficient of lsc	+0.045%/C
Temperature coefficient of Voc	-0.25%/C
Temperature coefficient of Pmax	-0.29%/℃

Application Cases

Fishery-PV Complementary Power Generation Project In Zhuhai, Guangdong

Zhuhai, Guangdong

400MW

Project capacity

Ground-mounted PV Project in Yibin, Sichuan

Yibin, Sichuan

25MW

Project capacity

Aosen Group Commercial & Industrial Rooftop PV Project

Xinji, Hebei

39MW

Project capacity
