WING Series

WING series
Promote green innovation
with cutting-edge technology

Download

735 W

Maximum power

23.67 %

Maximum efficiency

15 years

Product warranty

30 years

Power warranty

Product advantages

Promote green innovation with cutting-edge technology

High efficiency

High efficiency and high conversion rate
Strict Quality Control

A strict quality control system ensures long-term operational reliability and stability of products.
Excellent On-Site Power Output

Better temperature coefficient, low-light performance, and bifaciality, generating more electricity in real-world applications.
Extended Warranty

15-Year Product Warranty, Extendable to 25 Years; 30-Year Power Warranty.

Mechanical parameters

Item

Specifications
Cell Type

N-Type HJT
No. of cells

132(2x66)
Output wire

T ü V 1x4mm, (+) 350mm, (-) 280mm
Wire length can be customized according to customer needs
Glass

Front glass: high transmittance, low iron, heat strengthened glass
Back glass: heat strengthened glass
Frame

Anodized aluminum alloy
Weight

38.5 kg

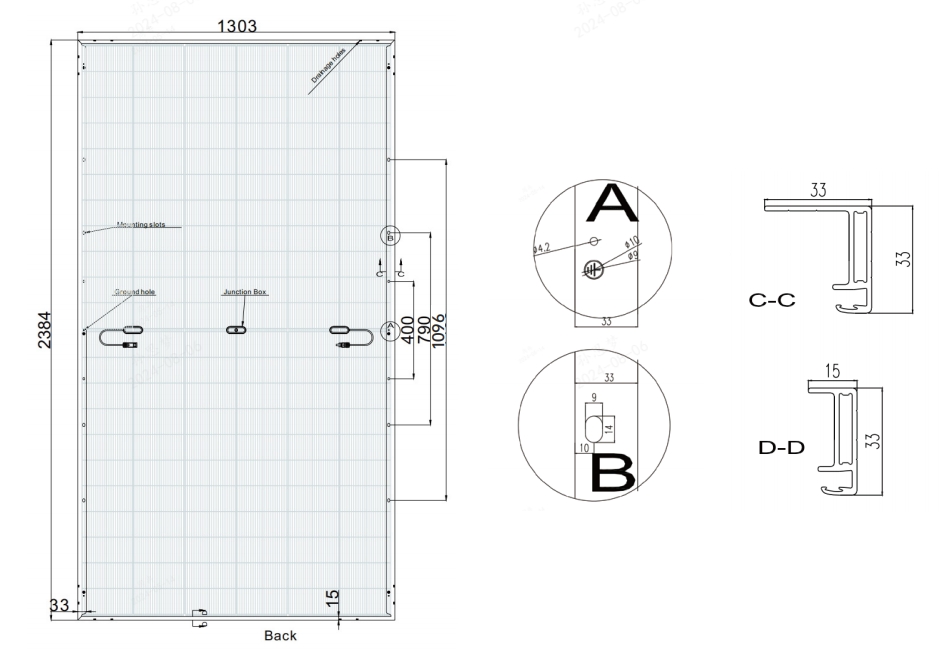

Dimension

2384x1303x33mm
Packaging information

33 pieces per pallet
Packaging box size (LxWxH): 2400x1110x1310
594 pieces/13m transport truck, 759 pieces/17.5m transport truck
Safety protection level

Class ll

Item	Specifications
Cell Type	N-Type HJT
No. of cells	132(2x66)
Output wire	T ü V 1x4mm, (+) 350mm, (-) 280mm Wire length can be customized according to customer needs
Glass	Front glass: high transmittance, low iron, heat strengthened glass Back glass: heat strengthened glass
Frame	Anodized aluminum alloy
Weight	38.5 kg
Dimension	2384x1303x33mm
Packaging information	33 pieces per pallet Packaging box size (LxWxH): 2400x1110x1310 594 pieces/13m transport truck, 759 pieces/17.5m transport truck
Safety protection level	Class ll

Mechanical Loading

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm hailstone at 23m/s

Temperature Ratings (STC Test)

Temperature coefficient of lsc	+0.04%/C
Temperature coefficient of Voc	-0.24%/℃
Temperature coefficient of Pmax	-0.26%/℃

Application Cases

Fishery-PV Complementary Power Generation Project In Zhuhai, Guangdong

Zhuhai, Guangdong

400MW

Project capacity

Ground-mounted PV Project in Yibin, Sichuan

Yibin, Sichuan

25MW

Project capacity

Aosen Group Commercial & Industrial Rooftop PV Project

Xinji, Hebei

39MW

Project capacity
